Wheel skid steer loader JC45V

Engine model: C490bpg
Rated power: 36.7/2650kW/RPM
Rick load: 700kg
Eat emission standard: National II

Classification :

PRODUCT DETAILS

Keywords: Koman lmport

Product parameters

	Model	JC45V
Performance	Operating weight（kg）	3300
	Rated load（kg）	700
	Bucket capacity（m³）	0.4
	Max Speed（km/h）	12
	Max traction（kN）	≥25.40
	Max breakout（kN）	≥18.4
	Lifting time of boom（s）	7
Engine	Manufacturer	新柴
	Model	C490BPG
	Rated power （kW/rpm）	36.7/2650
	Engine displacement（L）	2.27
	Emission Standard	国二

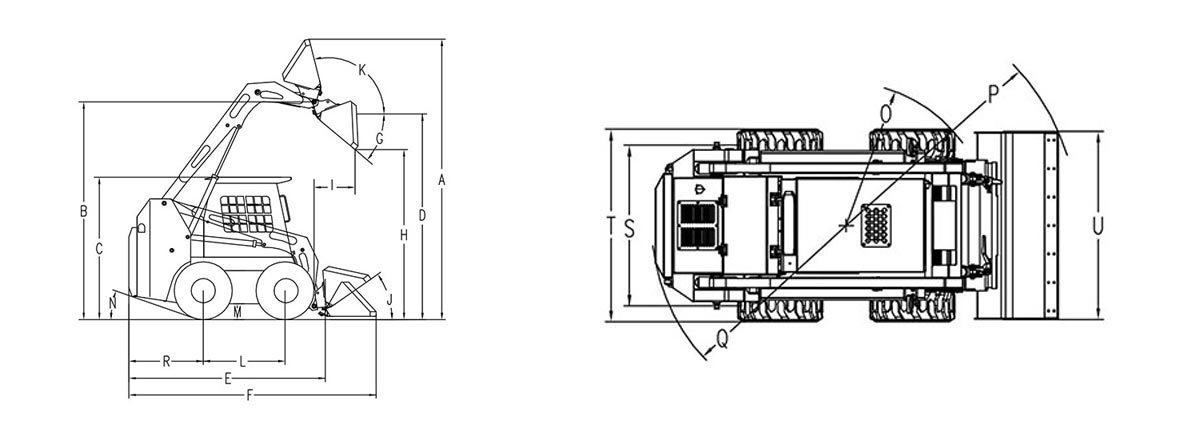

Dimension	Overall operating height （mm）	4100
	Height to bucket hinge pin （mm）	3090
	Height to top of cab （mm）	2113
	Height to bottom of level bucket（mm）	2910
	Without bucket length（mm）	2638
	Overall length with bucket（mm）	3466
	Dumping angle at maximum height（°）	40
	Dumping height（mm）	2250
	Dumping reach（mm）	800
	Rollback of bucket on ground（°）	30
	Rollback of bucket at full height（°）	100
	Wheelbase（mm）	1075
	Ground clearance（mm）	180
	Angle of departure（°）	20
	Front turning radius without bucket（mm）	1300
	Front tuning radius（mm）	2290
	Rear tuning radius（mm）	1440
	Rear axle to bumper （mm）	1080
	Tread width （mm）	1450
	Width (mm)	1720
	Bucket width （mm）	1740
