Wheel skid steer loader JC25
Rated power: 18.2/3000kW/RPM
Retate load: 380kg
Eat emission standard: Europe V/EPA4
Classification :
PRODUCT DETAILS
Keywords: Koman lmport
Product parameters
| Model | JC25 | |
Performance |
Operating weight（kg） | 1460 |
| Rated load（kg） | 380 | |
| Bucket capacity（m³） | 0.2 | |
| Max Speed（km/h） | 9 | |
| Max traction（kN） | ≥12 | |
| Max breakout（kN） | ≥7.3 | |
| Lifting time of boom（s） | 7 | |
Engine |
Manufacturer | 久保田 |
| Model | D1105 | |
| Rated power （kW/rpm） | 18.2/3000 | |
| Engine displacement（L） | 1.123 | |
| Emission Standard | 欧五/EPA4 | |

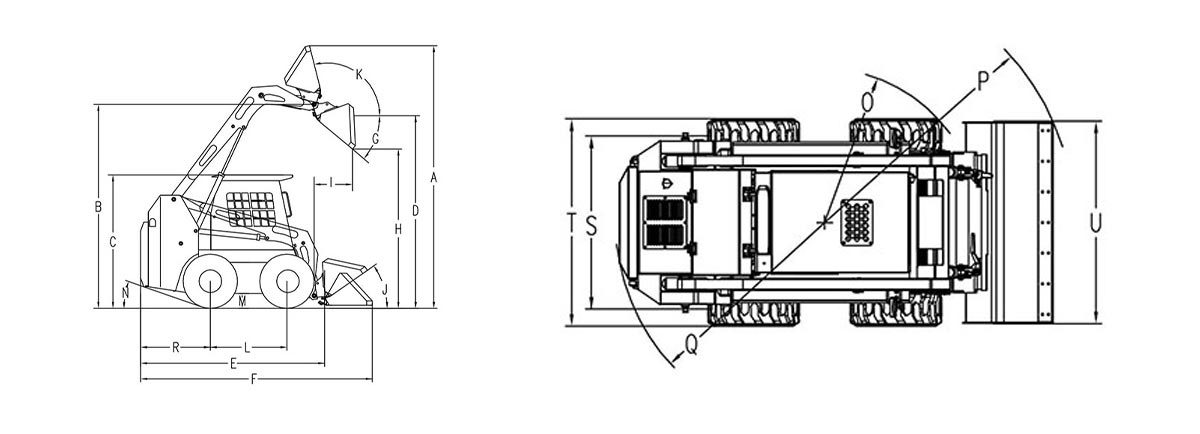

Dimension |
Overall operating height （mm） | 3400 |
| Height to bucket hinge pin （mm） | 2500 | |
| Height to top of cab （mm） | 1813 | |
| Height to bottom of level bucket（mm） | 2446 | |
| Without bucket length（mm） | 2200 | |
| Overall length with bucket（mm） | 2950 | |
| Dumping angle at maximum height（°） | 40 | |
| Dumping height（mm） | 2000 | |
| Dumping reach（mm） | 441 | |
| Rollback of bucket on ground（°） | 30 | |
| Rollback of bucket at full height（°） | 103 | |
| Wheelbase（mm） | 801 | |
| Ground clearance（mm） | 145 | |
| Angle of departure（°） | 20 | |
| Front turning radius without bucket（mm） | 960 | |
| Front tuning radius（mm） | 1660 | |
| Rear tuning radius（mm） | 1253 | |
| Rear axle to bumper （mm） | 910 | |
| Tread width （mm） | 785 | |
| Width (mm) | 920 | |
| Bucket width （mm） | 1070 |
