Track skid steer loader TS65
Rated power (KW): 55KW
Operation weight (kg): 3800kg
Full length (MM): 3500mm
Full width (MM): 1782mm
The whole machine is high (MM): 2150mm
Classification :
PRODUCT DETAILS
Keywords: Koman lmport
The TS series uses a rubber track walking system. The ground ratio is low. Can adapt to soft ground and mountain driving operations. Equipped with a dual -speed motor, the speed of the host
can reach 18 km/h.
Technical characteristics
The TS series uses a rubber track walking system. The ground ratio is low. Can adapt to soft ground and mountain driving operations. Equipped with a dual -speed motor, the speed of the host
can reach 18 km/h.
Configure a high -flow system, with a large flow of 120 liters, 130 -liter/cents, 140 -liter/cents. The rear of the host can be equipped with a loose soil, which is greater than 500mm.

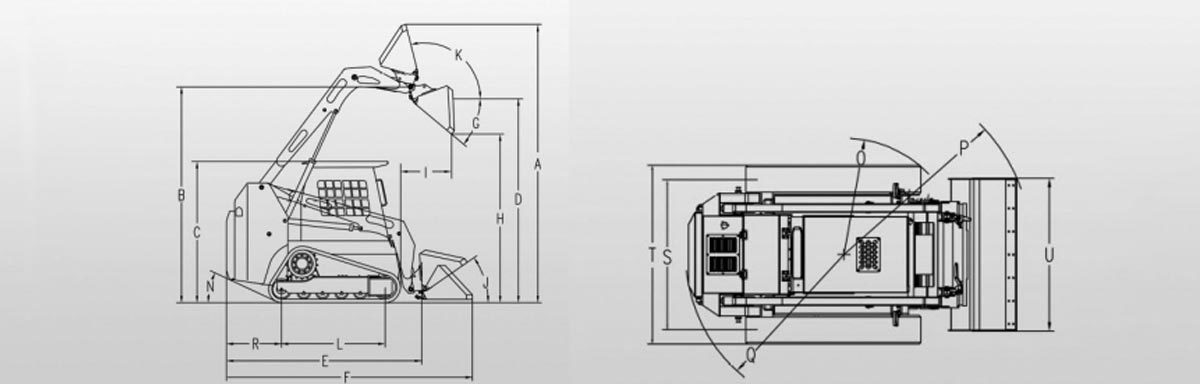

Product parameters
| A | Overall operating height (mm) | 3480 |
| B | Height to bucket hinge pin (mm) | 2900 |
| C | height to top of cab (mm) | 2150 |
| D | Height to bottom of level bucket(mm) | 2730 |
| E | Overall length ithout bucket（mm） | 2750 |
| F | overall length with bucket(mm) | 3500 |
| G | Dumping angle at maximum height(°) | 40 |
| H | Dumping height(mm) | 2230 |
| I | Dumping reach(mm) | 715 |
| J | Rollback o bucket on ground(°) | 30 |
| K | Rollback of bucket at full height(°) | 104 |
| L | Wheelbase(mm) | 1500 |
| M | Ground clearance(mm) | 200 |
| N | Angleof departure(°) | 20 |
| O | Front turning radins without bucket(mm) | 1298 |
| P | Front tuning radius(mm) | 2010 |
| Q | Rear tuning radius(mm) | 1714 |
| R | Rear axle to bumper (mm) | 890 |
| S | Tread width,enterline to centerline (mm) | 1462 |
| T | Width (mm) | 1782 |
| U | Bucket width (mm) | 1830 |
|
Model |
TS65 |
|
Operating load (kg) |
1000 |
|
Max Speed（km/h） |
12 |
|
Rated flux (L/min) |
80 |
|
High Flow Flux (L/min) |
120 |
|
Tire（track） model |
320×86 |
|
Rated power (Kw) |
55 |
|
Fuel tank capacity (L) |
90 |
|
self weight bucket (kg) |
3800 |
|
Bucket capacity (m³) |
0.55 |
