Track skid steer loader TS50
Rated power (KW): 36KW
Operation weight (kg): 2800kg
Full length (MM): 2950mm
Full width (MM): 1402mm
The whole machine is high (MM): 2050mm
Classification :
PRODUCT DETAILS
Keywords: Koman lmport
The TS series uses a rubber track walking system. The ground ratio is low. Can adapt to soft ground and mountain driving operations. Equipped with a dual -speed motor, the speed of the host can reach 18 km/h.
Technical characteristics
The TS series uses a rubber track walking system. The ground ratio is low. Can adapt to soft ground and mountain driving operations. Equipped with a dual -speed motor, the speed of the host can reach 18 km/h.
Configure a high -flow system, with a large flow of 120 liters, 130 -liter/cents, 140 -liter/cents. The rear of the host can be equipped with a loose soil, which is greater than 500mm.
Product parameters

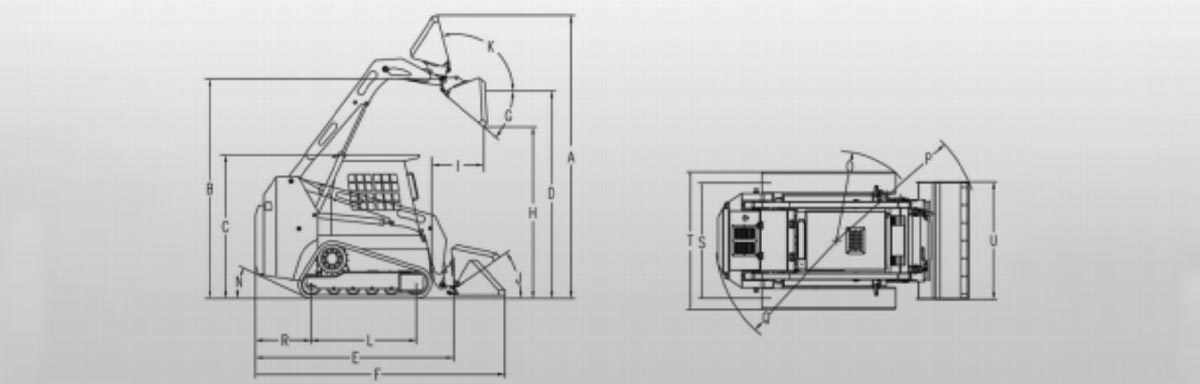

| Main technical parameters/ models | TS50 | |
|---|---|---|
| A | Overall operating height (mm) | 3350 |
| B | Height to bucket hinge pin (mm) | 2770 |
| C | height to top of cab (mm) | 2050 |
| D | Height to bottom of level bucket(mm) | 2603 |
| E | Without bucket length（mm） | 2300 |
| F | overall length with bucket(mm) | 2950 |
| G | Dumping angle at maximum height(°) | 40 |
| H | Dumping height(mm) | 2100 |
| I | Dumping reach(mm) | 790 |
| J | Rollback o bucket on ground(°) | 30 |
| K | Rollback of bucket at full height(°) | 104 |
| L | Wheelbase(mm) | 1240 |
| M | Ground clearance(mm) | 140 |
| N | Angle of departure(°) | 20 |
| O | Front turning radius without bucket(mm) | 1064 |
| P | Front tuning radius(mm) | 1825 |
| Q | Rear tuning radius(mm) | 1264 |
| R | Rear axle to bumper (mm) | 594 |
| S | Tread width (mm) | 1102 |
| T | Width (mm) | 1402 |
| U | Bucket width (mm) | 1500 |
| Product specification |
TS50 |
| Rated load |
700 |
| Maximum driving speed |
10 |
| Hydraulic flow |
60 |
| Large traffic system flow |
\ |
| Tracked model |
300X52.5 |
| Rated power |
36 |
| Fuel tank capacity |
50 |
| Weight |
2800 |
| Bucket volume |
0.3 |
