Track skid steer loader TS100
Rated power (KW): 74KW
Operation weight (kg): 4500kg
Full length (MM): 3700mm
Full width (MM): 1994mm
The whole machine is high (MM): 2160mm
Classification :
PRODUCT DETAILS
Keywords: Koman lmport
The structure is compact, the maneuvering movement is suitable for narrow space operations; the control rod control system of the cabin is turned off; the dual throttle control; the automatic leveling system; the multi -function has extensive accessories;
Technical characteristics
Compact structure, mobile exercise suitable for narrow space operations;
Turn off the cabin control rod control system;
Double throttle control; automatic leveling system;
Multi -function has extensive accessories;
Solid pressure braking.
Product parameters

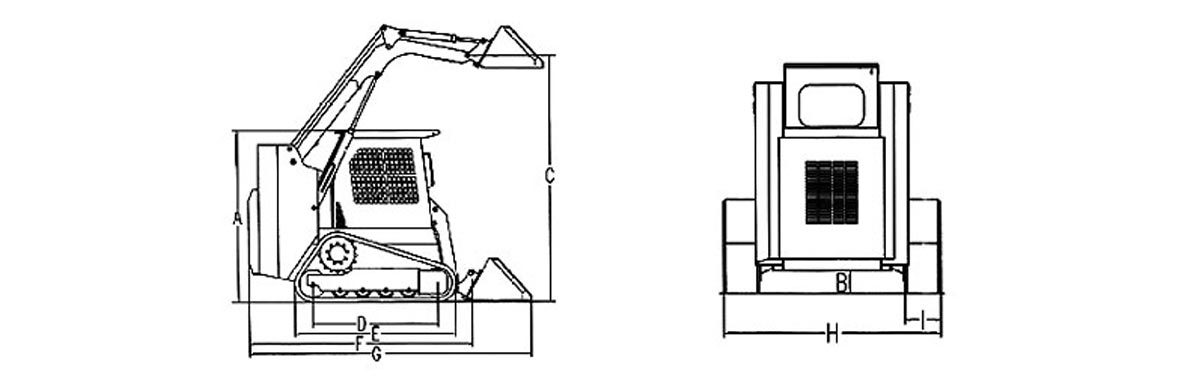

| Main technical parameters/ models | TS100 | |
|---|---|---|
| A | Overall operating height (mm) | 4070 |
| B | Height to bucket hinge pin (mm) | 3150 |
| C | height to top of cab (mm) | 2160 |
| D | Height to bottom of level bucket(mm) | 2983 |
| E | Without bucket length（mm） | 3000 |
| F | overall length with bucket(mm) | 3700 |
| G | Dumping angle at maximum height(°) | 40 |
| H | Dumping height(mm) | 2450 |
| I | Dumping reach(mm) | 700 |
| J | Rollback o bucket on ground(°) | 30 |
| K | Rollback of bucket at full height(°) | 104 |
| L | Wheelbase(mm) | 1500 |
| M | Ground clearance(mm) | 200 |
| N | Angle of departure(°) | 20 |
| O | Front turning radius without bucket(mm) | 1365 |
| P | Front tuning radius(mm) | 2200 |
| Q | Rear tuning radius(mm) | 1742 |
| R | Rear axle to bumper (mm) | 938 |
| S | Tread width (mm) | 1654 |
| T | Width (mm) | 1994 |
| U | Bucket width (mm) | 2030 |
|
Model |
TS100 |
|
Operating load (kg) |
1200 |
|
Max Speed（km/h） |
9\18 |
|
Rated flux (L/min) |
88 |
|
High Flow Flux (L/min) |
140 |
|
Tire（track）model |
320×86 |
|
Rated power (Kw) |
74 |
|
Fuel tank capacity (L) |
90 |
|
self weight bucket (kg) |
4500 |
|
Bucket capacity (m³) |
0.55 |
